N14 Notion Sound 500W Portable Loudspeaker

Logic Systems Pro Audio

500W Portable Loudspeaker

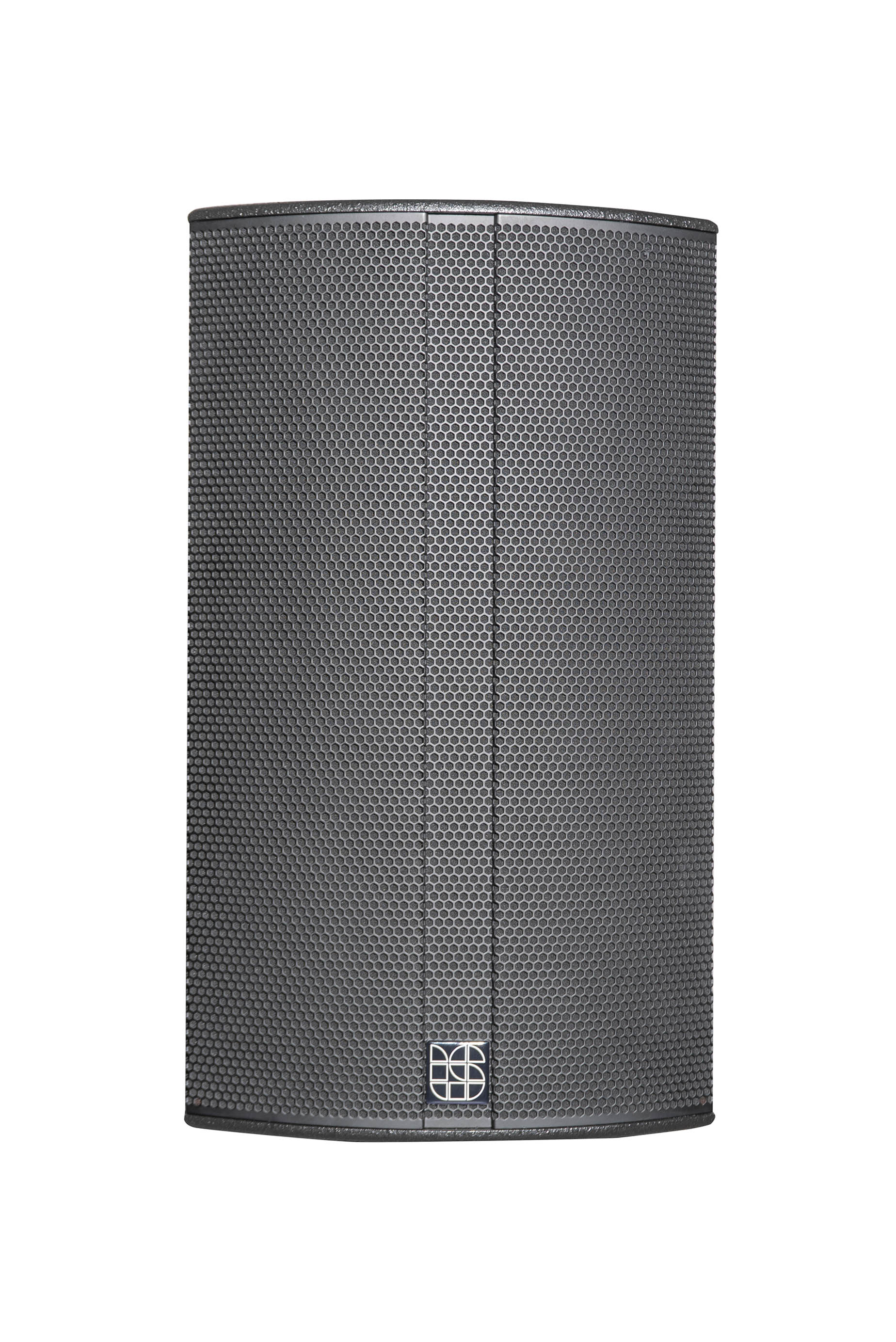

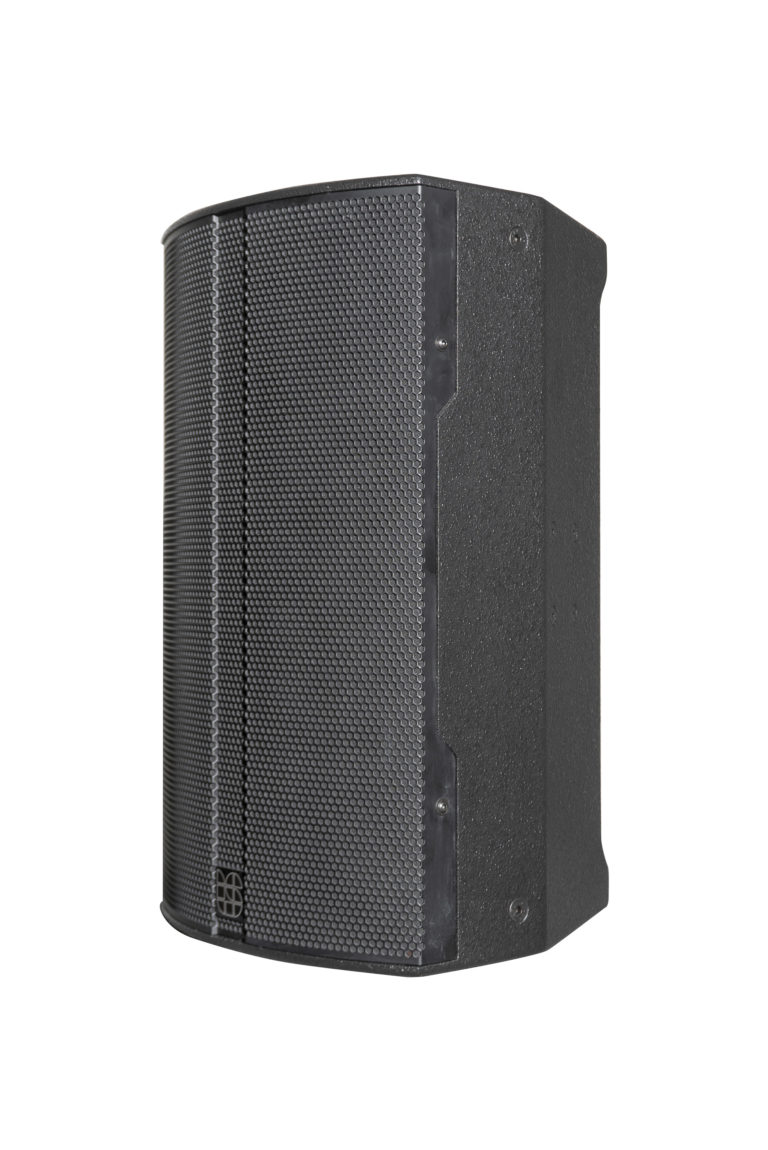

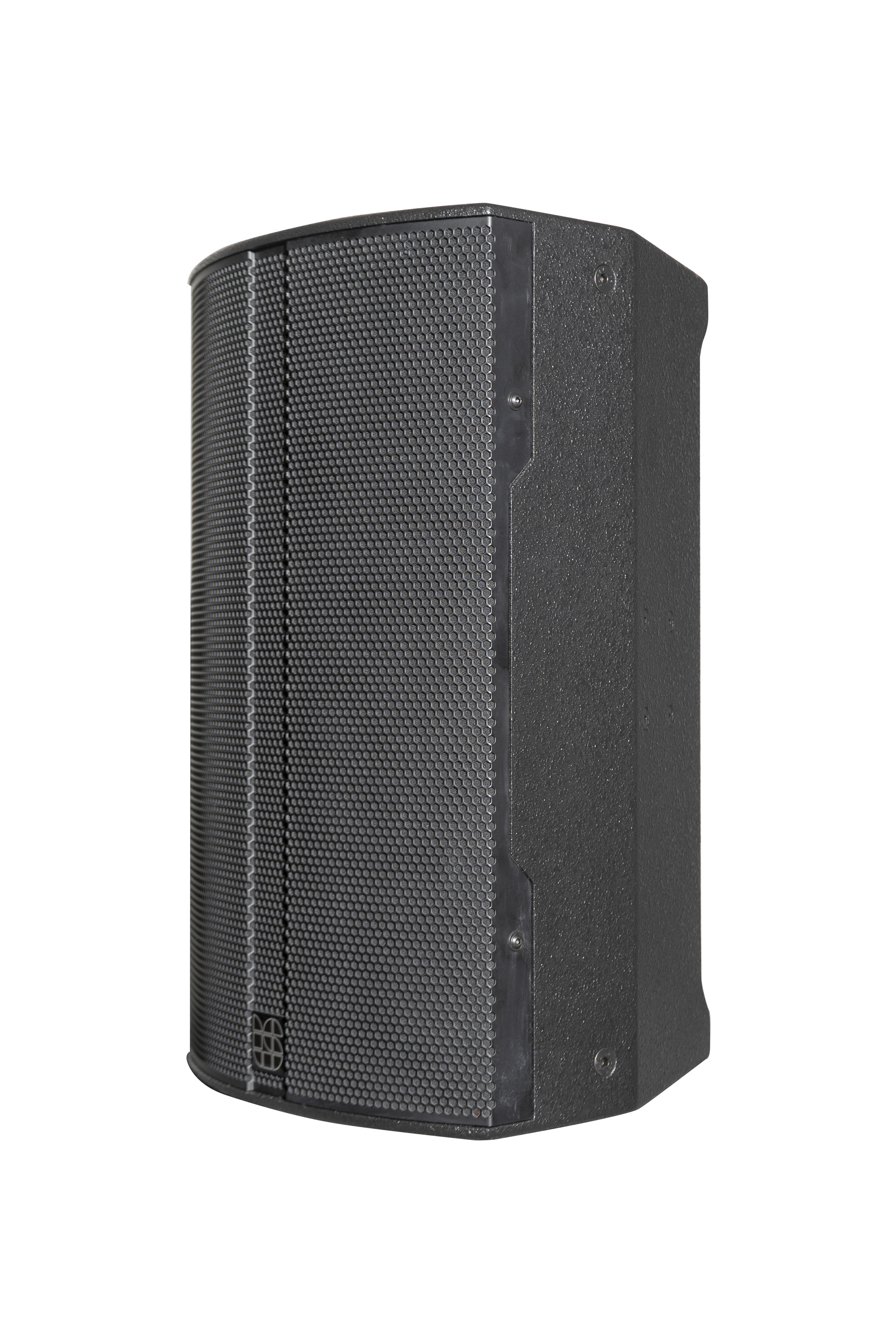

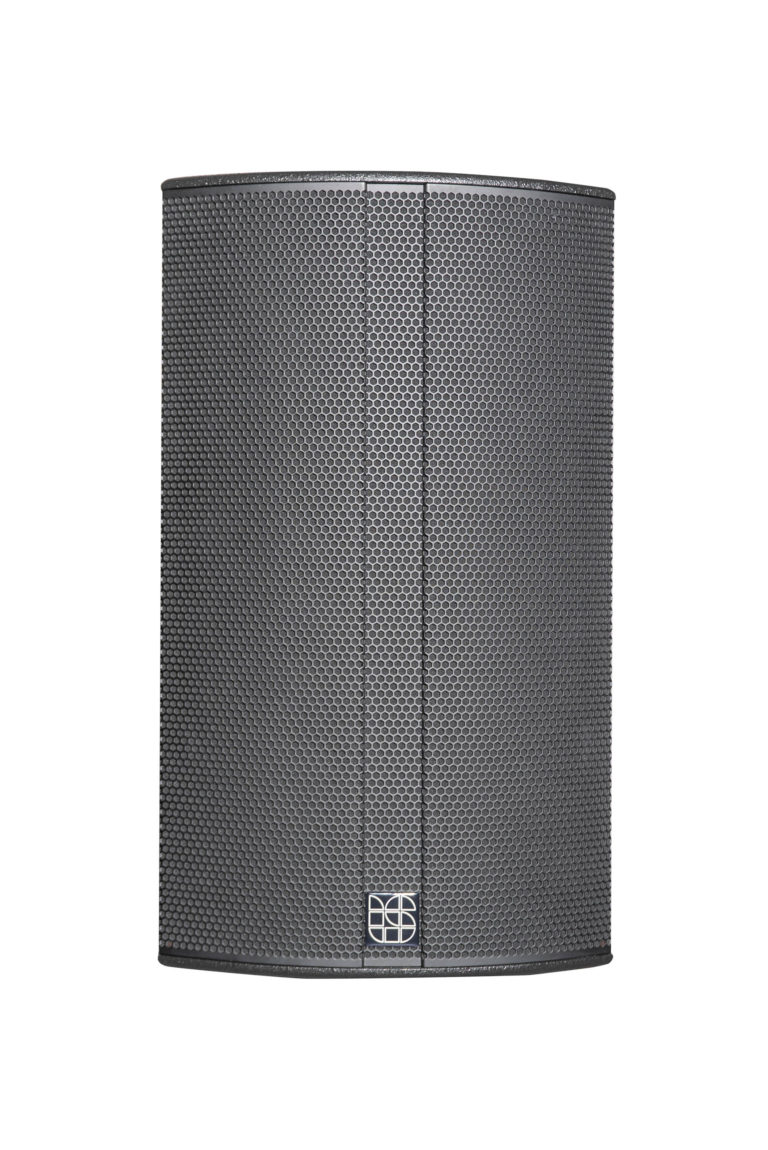

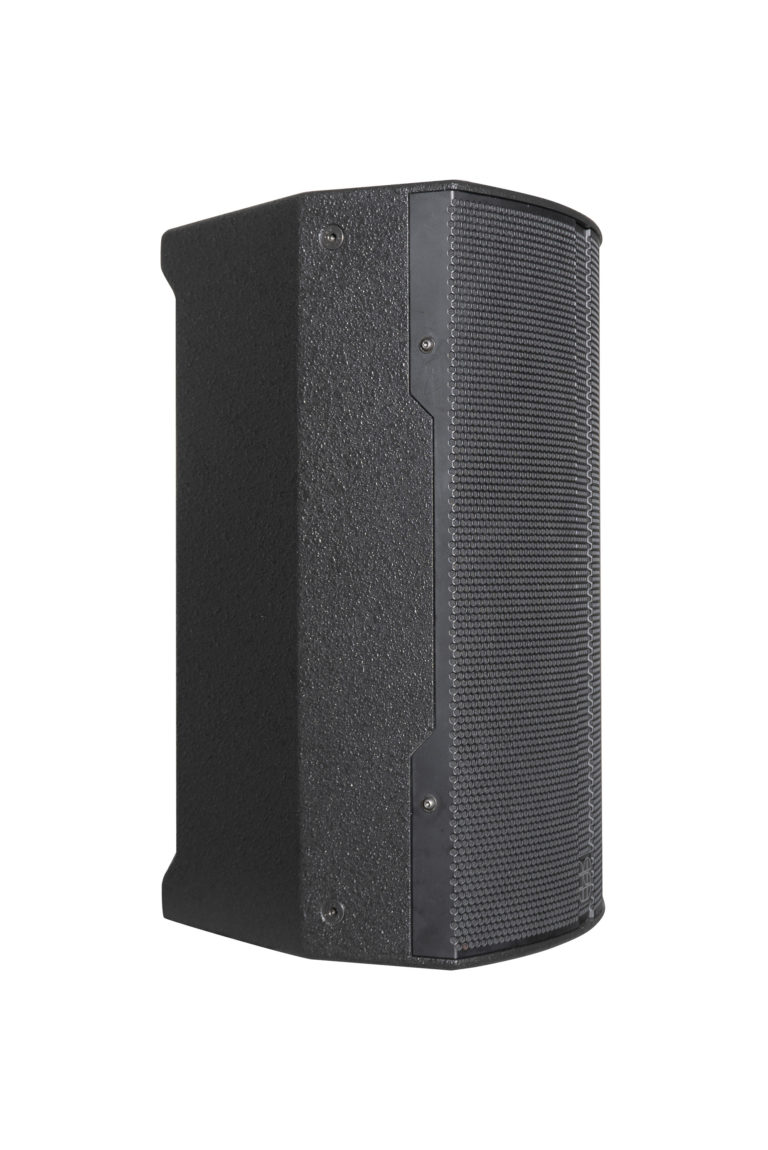

The Notion 14 is a compact, high power, fullrange loudspeaker enclosure. The cabinet combines a 12” neodymium mid/bass cone with a 1.4” neodymium compression driver on a 90° x 60° horn flare. The horn flare rotates to aid use in both landscape and portrait applications. The cabinet can be used Fullrange or combined with the NB15 or NB18 bass enclosures to form an integrated system. The Notion 14 contains an internal passive crossover network.

The multipurpose nature of the cabinet makes it suitable for a variety of applications including FOH, stage fills and delays. Target markets for the product include church, live sound, theatre, installation and A/V.

Technical Information:

Technical Specification
Frequency Response 50Hz – 20kHz
Components Bass/mid: 12” Neodymium cone driver
HF: 1.4” exit neodymium compression driver
Power Handling 500w
Sensitivity 97dB
Directivity 90° x 60° above 1.5kHz
Impedance 8 Ohm
Construction 15mm Birch plywood
Finish Water based textured black paint
Connections 2 x Neutrik NL4 connectors
1+/1- Input 2+/2- N/C
Dimensions 365mm (W) x 625mm (H) x 380mm (D)
Packaged Dimensions 510mm (W) x 780mm (H) x 465mm (D)
Weight 21 KG

Cabinet Information:

CABINET SPEC
Cabinet Notion 14
Handles 2 off
Tophat Yes
M20 No
Castors No
Bracket Pt. Top/Side/Rear
Inserts / Fly
Points:
10 off
