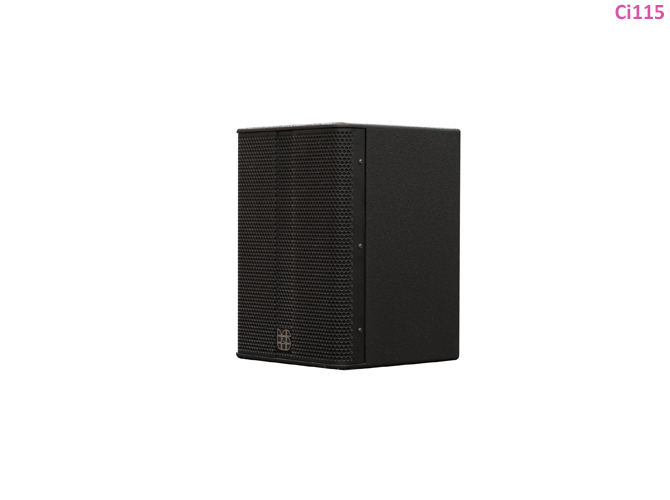

Compact Installation Ci115
The Logic Systems Ci115 is a compact, high power, bass enclosure which features a direct radiating 15” bass driver. The Ci115 is installation specific. Corner porting also ensures uniformity of performance when mounted in either the landscape or portrait modes.
Additional Note:
1.) Sensitivity measured at 1 metre with 2.83V, using band limited pink noise.
Technical Information:
| Technical | Specification |
|---|---|
| Frequency Response | 40Hz – 150Hz |
| Components | Bass: 1 x 15” cone driver HF: N/A |
| Power Handling | 600w |
| Sensitivity (1) | 98dB |
| Directivity | Omni-directional |
| Impedance | 8 Ohms |
| Construction | 18mm Birch plywood |
| Finish | Water based textured black paint |
| Connections | Phoenix screw terminal connector (supplied) |
| Dimensions | 425mm (W) x 600mm (H) x 425mm (D) |
| Packaged Dimensions | 560mm (W) x 750mm (H) x 560mm(D) |
| Weight | 25Kg |
Cabinet Information:
| CABINET | SPEC |
|---|---|
| Cabinet | Ci115 |
| Handles | No |
| Tophat | No |
| M20 Plate | No |
| Castors | No |
| Bracket Pt | No |
| Inserts / Fly Points: |
No |
