350W LOUDSPEAKER: Compact Installation Ci12
350W LOUDSPEAKER Compact Installation Ci12
Compact Installation: Ci12

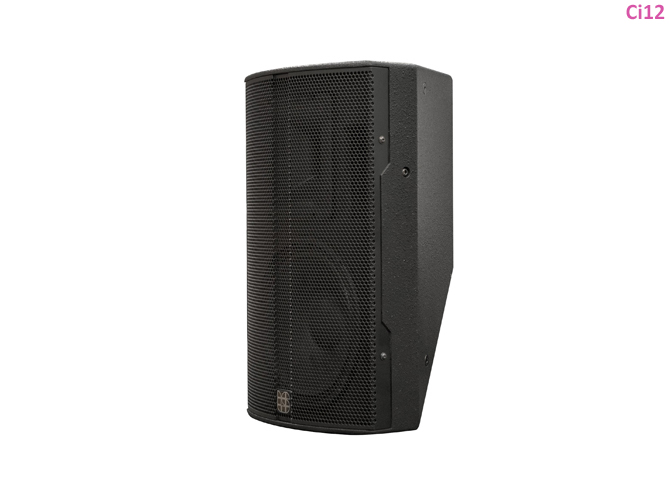

The Logic Systems Ci12 cabinet combines a 12” Mid/Bass cone with 1” compression driver on a 90 x 75 horn flare. The cabinet is part of the Ci series which is aimed specifically at the Bar and Club installation market. The Ci Series are available with a range of bracket options to aid installation and can also be ordered in special colours to fit the needs of the designers. Standard colours are black and white.
The Ci Series aims to bring both an audio and build quality that is not common at this price point. To this end all Ci Series cabinets are constructed from birch ply and are rebated, glued and screwed.
Additional Note:
1.) Sensitivity measured at 1 metre with 2.83V, using band limited pink noise.
Technical Information:
| Technical | Specification |
|---|---|
| Frequency Response | 60Hz – 20kHz |
| Components | Bass/mid:12” cone driver HF: 1” exit compression driver |
| Power Handling | 350w |
| Sensitivity (1) | 97dB |
| Directivity | 90° x 75° above 2kHz |
| Impedance | 8 Ohms nominal |
| Construction | 15mm Birch plywood |
| Finish | Water based textured black paint |
| Connections | Phoenix screw terminal connector (supplied) |
| Dimensions | 365mm (W) x 625mm (H) x 345mm (D) |
| Packaged Dimensions | 510mm (W) x 780mm (H) x 465mm (D) |
| Weight | 17Kg |
Cabinet Information:
| CABINET | SPEC |
|---|---|
| Cabinet | Ci12 |
| Handles | No |
| Tophat | No |
| M20 Plate | No |
| Castors | No |
| Bracket Pt | Back |
| Inserts / Fly Points: |
9 off M10 inserts |
