300W LOUDSPEAKER Compact Installation Ci10

300W LOUDSPEAKER Compact Installation Ci10

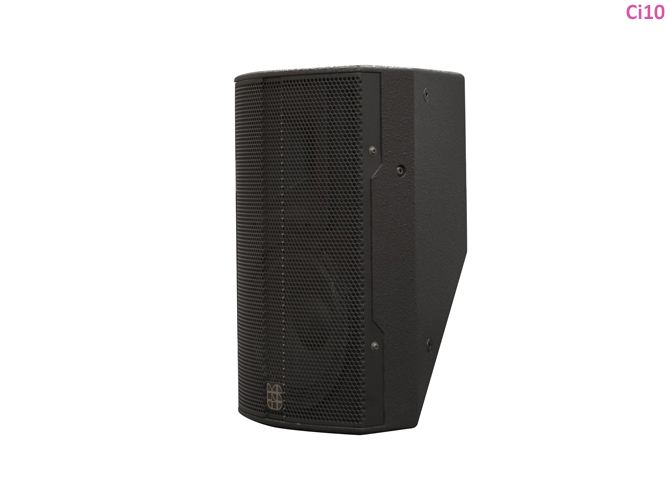

Compact Installation: Ci10

The Logic Systems Ci10 cabinet combines a 10” Mid/Bass cone with 1” compression driver on a 90 x 75 horn flare. The cabinet is part of the Ci series which is aimed specifically at the Bar and Club installation market. The Ci Series are available with a range of bracket options to aid installation and can also be ordered in special colours to fit the needs of the designers. Standard colours are black and white.

The Ci Series aims to bring both an audio and build quality that is not common at this price point. To this end all Ci Series cabinets are constructed from birch ply and are rebated, glued and screwed.

Additional Note:

1.) Sensitivity measured at 1 metre with 2.83V, using band limited pink noise.

2.) Please note that Ci10 cabinets are supplied boxed in pairs.

Technical Information:

Technical Specification
Frequency Response 60Hz – 20kHz
Components Bass/mid:10” cone driver
HF: 1” Compression driver
Power Handling 300w
Sensitivity (1) 97.5dB
Directivity 90° x 75° above 1.5kHz
Impedance 8 Ohms nominal
Construction 15mm Birch plywood
Finish Water based textured black paint
Connections Phoenix screw terminal connector (supplied)
Dimensions 305mm (W) x 520mm (H) x 325mm (D)
Packaged Dimensions (2) 840mm (W) x 680mm (H) x 420mm (D)
Weight 15Kg

Cabinet Information:

CABINET SPEC
Cabinet Ci10
Handles No
Tophat No
M20 Plate No
Castors No
Bracket Pt Back
Inserts / Fly
Points:
9 off M10 inserts
