400W Bass Loudspeaker Enclosure: Installed Sound B120
Installed Sound Range: B120 – Logic Systems Pro Audio
Installed Sound Range
The Logic Systems Pro Audio B120 is a compact, high power, 400w bass loudspeaker enclosure which features a direct radiating 12 inch bass driver. The B120 is installation specific and includes insert points that permit the cabinet to be mounted in a variety of positions including against the ceiling; a useful feature when space is often at a premium. Corner porting also ensures uniformity of performance when mounted in either the landscape or portrait modes.
The Logic Systems DP2140 system controller contains presets for the combination of the B120 with other Logic System products.
Additional Note:
1.) Sensitivity measured at 1 meter with 2.83V, using band limited pink noise.
Technical Information:
Technical | Specification |
---|---|
Frequency Response | 55Hz – 150kHz |
Components | Bass: 1 x 12″ cone driver HF: N/A |
Power Handling | 400w |
Sensitivity (1) | 98dB |
Directivity | Omni-directional |
Impedance | 8 Ohm |
Construction | 15mm Birch plywood |
Finish | Water based textured black paint |
Connections | 2 x Neutrik NL4 MPR 1+/-: Input 2+/-: Linked |

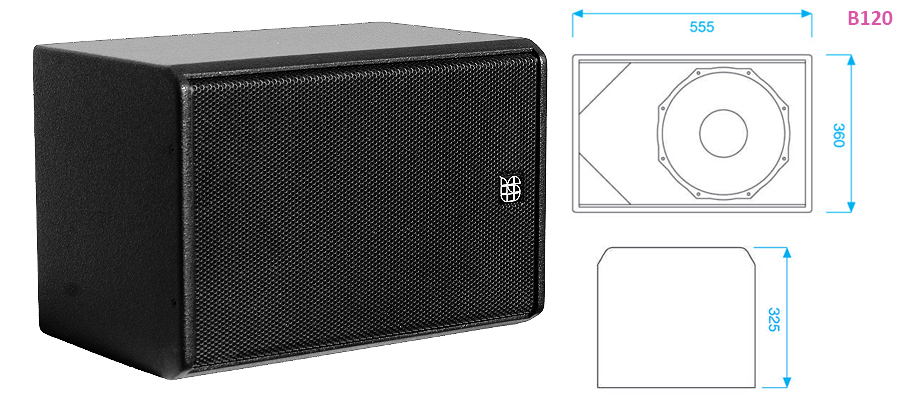

Dimensions | 365mm (W) x 555mm (H) x 325mm (D) |
Packaged Dimensions (2) | 500mm (W) x 720mm (H) x 445mm(D) |
Weight | 22 KG |
Cabinet Information:
CABINET | SPEC |
---|---|
Cabinet | B120 |
Handles | No |
Tophat | No |
M20 Plate | No |
Castors | No |
Bracket Pt | No |
Inserts / Fly Points: |
No |
