1000W Bass Loudspeaker Cabinet: Installed Sound SB180i
Installed Sound Range: SB180i – Logic Systems Pro Audio
Installed Sound Range
The Logic Systems Pro Audio SB180i is an installation specific compact, high power, 1000w sub/bass enclosure which features a band pass loaded 18 inch Neodymium bass driver. Sonically the SB180i features the weight expected of an 18” driver, but also retains punch and control.
The SB180i is designed to combine with ML and IS Series products within fixed installation and is an ideal partner cabinet for the B300i, both cabinets having identical dimensions and runner spacings. The Logic Systems DP2140 system controller contains presets for the integration of the Ethos SB180i with other Logic Systems products.
Additional Note:
1.) Sensitivity measured at 1 meter with 2.83V, using band limited pink noise.
Technical Information:
| Technical | Specification |
|---|---|
| Frequency Response | 40Hz – 150kHz |
| Components | Bass: 1 x 18″ cone driver HF: N/A |
| Power Handling | 1000w |
| Sensitivity (1) | 98dB |
| Directivity | Omni-directional |
| Impedance | 8 Ohm |
| Construction | 18mm Birch plywood |
| Finish | Water based textured black paint |
| Connections | 2 x Neutrik NL4 connectors1+/-: Input 2+/-: Linked |

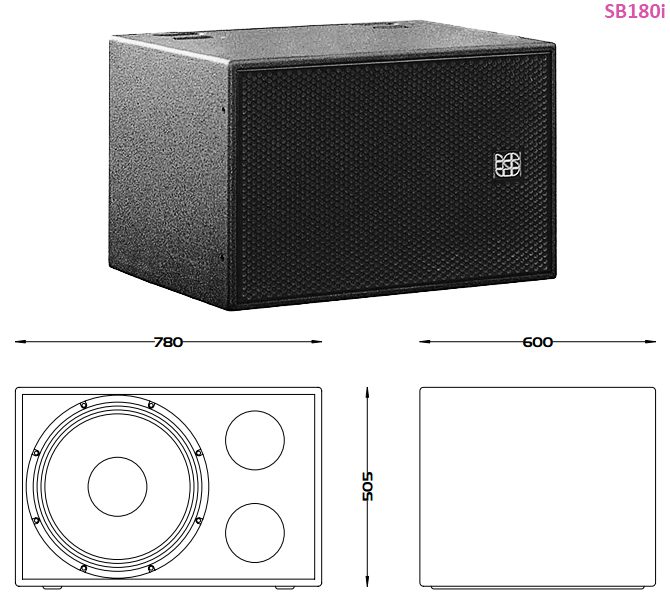

| Dimensions | 505mm (W) x 780mm (H) x 600mm (D) |
| Packaged Dimensions (2) | 635mm (W) x 930mm (H) x 730mm(D) |
| Weight | 48 KG |
Cabinet Information:
| CABINET | SPEC |
|---|---|
| Cabinet | SB180i |
| Handles | 4 OFF |
| Tophat | No |
| M20 Plate | No |
| Castors | No |
| Bracket Pt | No |
| Inserts / Fly Points: |
No |
